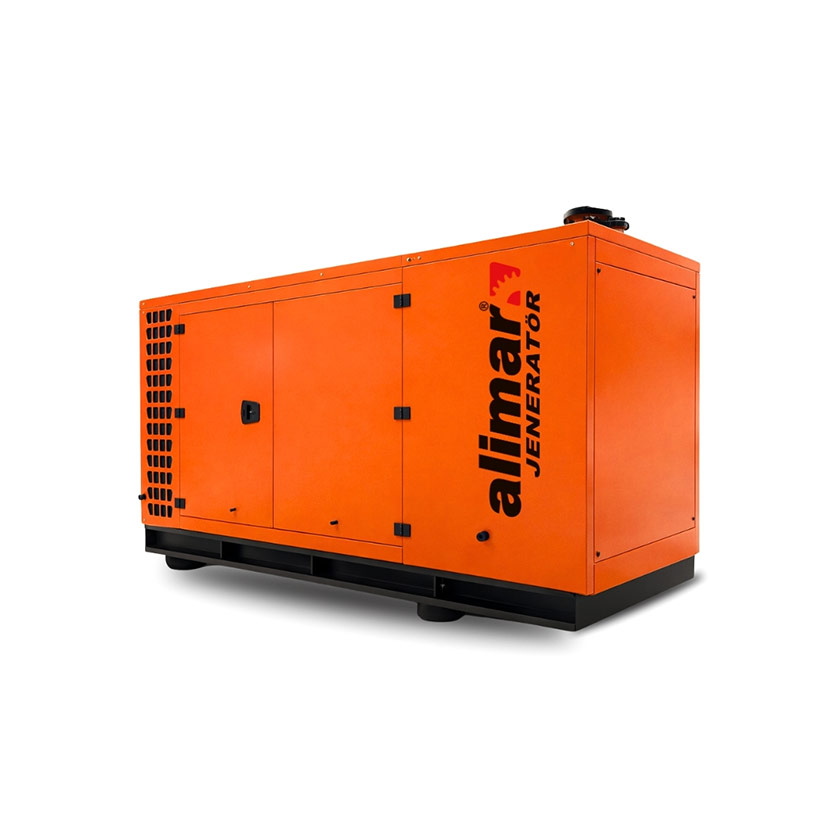

This diesel generator set is engineered for
applications requiring reliable standby or prime
power in fixed installations.
It is designed with a focus on power continuity,
operational safety, and optimized fuel efficiency,
ensuring stable and consistent performance across
varying load conditions.
Standby
10 kVA
Prıme
9 kVA
Fuel Type
DİZEL
Frequency
50 Hz
Technical Specifications
Engine
Alternator
Documents
| Technical Specifications | Unit | Value |
| Generator Model | ALMPE - 10 | |
| Engine Model | Perkins / 403A-11G1 | |
| Fuel Type | Diesel | |
| Frequency | Hz | 50 |
| Voltage | V | 400/231 |
| Power Factor | CosØ | 0.8 |
| Engine Brand | Perkins | |
| Engine Model | 403A-11G1 | |
| Engine Tуpe | 4 Stroke Diesel Engine | |
| Number of Cylinders / Configuration | 3L | |
| Total Displacement | It | 1,131 |
| Bore x Stroke | mm | 77 x 81 |
| Compression Ratio | 23:1 | |
| Engine Speed / Frequency | d/dk/Hz | 1500/50 |
| Engine Standby Power | kWm | 9,5 |
| Engine Prime Power | kWm | 8,6 |
| Aspiration System | Natural Aspiration | |
| Injection System | Direct | |
| Governor Type | Mechanical | |
| Cooling System | Water Cooled | |
| Coolant Capacity | lt | 5,2 |
| Cooling Air Flow | m3/dk | TBA |
| Lubricating Oil Capacity | lt | 4,9 |
| Electrical System | VDC | 12 |
| Battery Capacity | Adet x Ah | 1 x 60 |
| Charging Alternator Output | A | 15 |
| Jacket Water Heater | Adet x W | 1 × 500 |
| Combustion Air Flow | m3/dk | TBA |
| Exhaust Gas Flow | m3/dk | TBA |
| Exhaust Gas Temperature | ºC | TBA |
| Fuel Consumption at 100% Load | lt/s | 3 |
| Fuel Consumption at 75% Load | lt/s | 2,3 |
| Fuel Consumption at 50% Load | lt/s | 1,7 |
| Number of Phase / Poles | 3/4 | |
| Excitation System | Self Excited | |
| Voltage Regulator | Automatic | |
| Voltage Regulation | 1% | |
| Insulation Class | H | |
| Protection Class | IP23 | |
| Connection Type | Star | |
| Frequency | Hz | 50 |
| Power Factor | Cosø | 0,8 |
| Total Harmonic Distortion (No Load) | ||
| Output Voltage | VAC | 231 / 400 |
